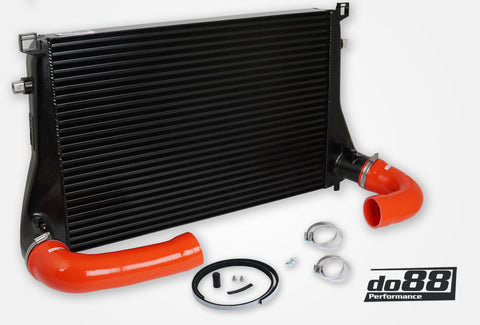

AUDI SEAT SKODA VW 1.8 / 2.0 TSI (MQB) Intercooler, red hoses

  • Sale
  • $1,074.54 CAD
  • Regular price $1,173.72 CAD
  • ICM-300-R


This is a self-designed performance intercooler from do88 for an easy drop-in-fitment in your Audi Seat Skoda VW 1.8 TSI / 2.0 TSI (MQB).

Significant advantages with do88 performance intercooler (VW Golf GTI OEM intercooler):
- Greater core volume: 15347cm3 (7719 cm3), 99 % bigger!
- Bigger active cooling area , 2692 cm2 vs 2573 cm2, 5 % bigger!
- Air flow at 0,15bar/2,18psi pressure drop: 455 CFM (310 CFM), 47 % higher!
- Lower post intercooler air temperature at same conditions: 24°C (36°C), 12°C lower!
- Fits all cars in the list below!

This intercooler is constructed to deliver the best cooling efficiency during tough conditions. Exclusively manufactured in aluminum with continuous welds, it guarantees reliability and endurance when you really need it. The increased core volume improves cooling efficiency and lower the intake air temperature. Naturally, this being a do88 performance product, we have executed thorough, severe and continuous tests developing this product to ensure best performance. Not one compromise has been made. This intercooler is immensely optimized to the given space for an easy drop-in-fitment.

The 99 % increased core volume is an achievement we are proud of. It´s a remarkable difference. Perceivable, to say the least. The engine pulls better all over the revs and withstands repeated full throttle runs without building heat. The perception of an intercooler being something to upgrade only after a major engine tune is false, yet widely spread among customers and car people. During hot Swedish summer days, at repeated pulls, inspired driving or even at ordinary driving in a hotter climate area, it doesn´t take much of an effort from the engine to generate dangerously high inlet temperatures – even on a standard, non-tuned, car. The cooling capacity with an OEM-intercooler is in many cases inferior which will affect the usable power outtake. The heat has to be eliminated, or else the promised output will be decreased as you start giving gas. With our intercooler you can rest assured the power is there, at all times.

This product comes with everything necessary for an easy installation. Bolts, washers and mounting instructions is of course included.

Do take care of your engine. Choose do88.

Click here to read Installation instruction.

Fits:

VW Golf (MK7, MK7.5)
Model years: 2013-
Model: GTI, R, Clubsport, ED40, Golf, Sportwagen
Engine: 1.8 TSI, 2.0 TSI

VW Passat (3G)
Model years: 2015-
Engine: 1.8 / 2.0 TSI

VW Tiguan (MK2)
Model years: 2016-
Engine: 2.0 TSI

VW Arteon
Model years: 2017-
Engine: 2.0 TSI

VW Jetta GLI (MK7)
Model years: 2019-
Engine: 2.0 TSI

Audi A3 / S3 (8V)
Model years: 2012-
Engine: 1.8 TFSI, 2.0 TFSI
Note! The plastic radiator/intercooler support frame will need trimming / modifications!
Click here to read the trimming instruction.

Audi TT / TTS (8S)
Model years: 2015-
Engine: 1.8 TFSI, 2.0 TFSI
Note! The plastic radiator/intercooler support frame will need trimming / modifications!

SEAT León / Cupra (MK3)
Model years: 2013-
Engine: 1.8 TSI, 2.0 TSI
Note! The plastic radiator/intercooler support frame will need trimming / modifications!
Click here to read the trimming instruction.

Skoda Octavia / VRS (MK3)
Model years: 2013-
Engine: 1.8 TSI, 2.0 TSI
Note! The plastic radiator/intercooler support frame will need trimming / modifications!

Skoda Superb (B8)
Model years: 2015-
Engine: 1.8 TSI, 2.0 TSI


OEM-reference:


5Q0 145 803N, 5Q0 145 803P
