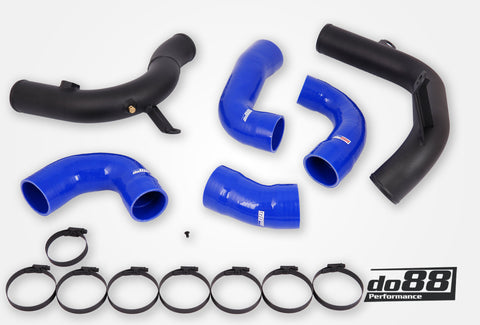

AUDI SEAT SKODA VW 1.8 / 2.0 TSI (MQB) OEM IC Pressure pipes, Blue hoses

  • Sale
  • $649.33 CAD
  • Regular price $709.27 CAD
  • TR-340-OE-3-B


The best AUDI SEAT SKODA VW 1.8 / 2.0 TSI (MQB) performance intercooler pipe kit on the market!

This kit is for you with significant horsepower goals that want to upgrade to the absolute best! Our pressure pipe has considerably better airflow than the stock pipe. This has been verified in several tests, both in car and in our own SuperFlow SF-1020 flow bench.

Advantages with do88 pressure pipes (OEM pipes):
- Air flow at 0,1bar/1,45psi pressure drop: 364CFM (280CFM), do88 30% higher! See diagram below.
- Designed to handle high pressure and temperatures!
- The pipe has one methanol injection connection (1/8 -27 NPT). The pipe is delivered with blanking plug in this connection.
- Fits all cars in list below!

Fits:

VW Golf (MK7, 7.5)
Model years: 2013-2020
Model: GTI, R, Clubsport, ED40, Golf, Sportwagen
Engine: 1.8 TSI, 2.0 TSI

VW Passat (3G)
Model years: 2015-
Engine: 1.8 / 2.0 TSI

VW Tiguan (MK2)
Model years: 2016-
Engine: 2.0 TSI

VW Arteon
Model years: 2017-
Engine: 2.0 TSI

VW Jetta GLI (MK7)
Model years: 2019-
Engine: 2.0 TSI

Audi A3 / S3 (8V)
Model years: 2012-
Engine: 1.8 TFSI, 2.0 TFSI

Audi TT / TTS (8S)
Model years: 2015-
Engine: 1.8 TFSI, 2.0 TFSI

SEAT León / Cupra (MK3)
Model years: 2013-
Engine: 1.8 TSI, 2.0 TSI

Skoda Octavia / VRS (MK3)
Model years: 2013-
Engine: 1.8 TSI, 2.0 TSI

Skoda Superb (B8)
Model years: 2015-
Engine: 1.8 TSI, 2.0 TSI

The pressure pipe is manufactured in 63mm (2,5”) mandrel bent seamless aluminum pipe.

Custom made high quality silicone hose with 4 layers of polyester/aramid reinforcement. These hose can handle very high temperature and pressure!

Always remember that the OEM intercooler pipes and hoses was designed for the power level the car was built for and a power increase or even very hard use of the car in a standard version may cause that the OEM pipes and hoses don’t have the performance you need. So only after engine software tune do88 pressure pipes will give a performance increase over the OEM pipes!

do88 pressure pipes comes with all hardware necessary for installation.

When you order this kit, there is two choice that needs to me made:

1. Hose color:
Three different hose colors are avalible Blue / Black / Red. There are no performance difference between the different colors, choose which color you think will be best for your car.

2. Intercooler:
Select which intercooler you have on your car. OEM or do88 Performance intercooler.

Click here for installation guide!

OEM-reference:
5Q0145828, 5Q0145832, 5Q0145832D, 5Q0145834, 5Q0145838, 6C0145838A, 5Q0145840, 5Q0145770B, 6C0145770A

This diagram shows the charge air flow at different pressure drops of do88 pressure pipes compared to OEM pipes:
